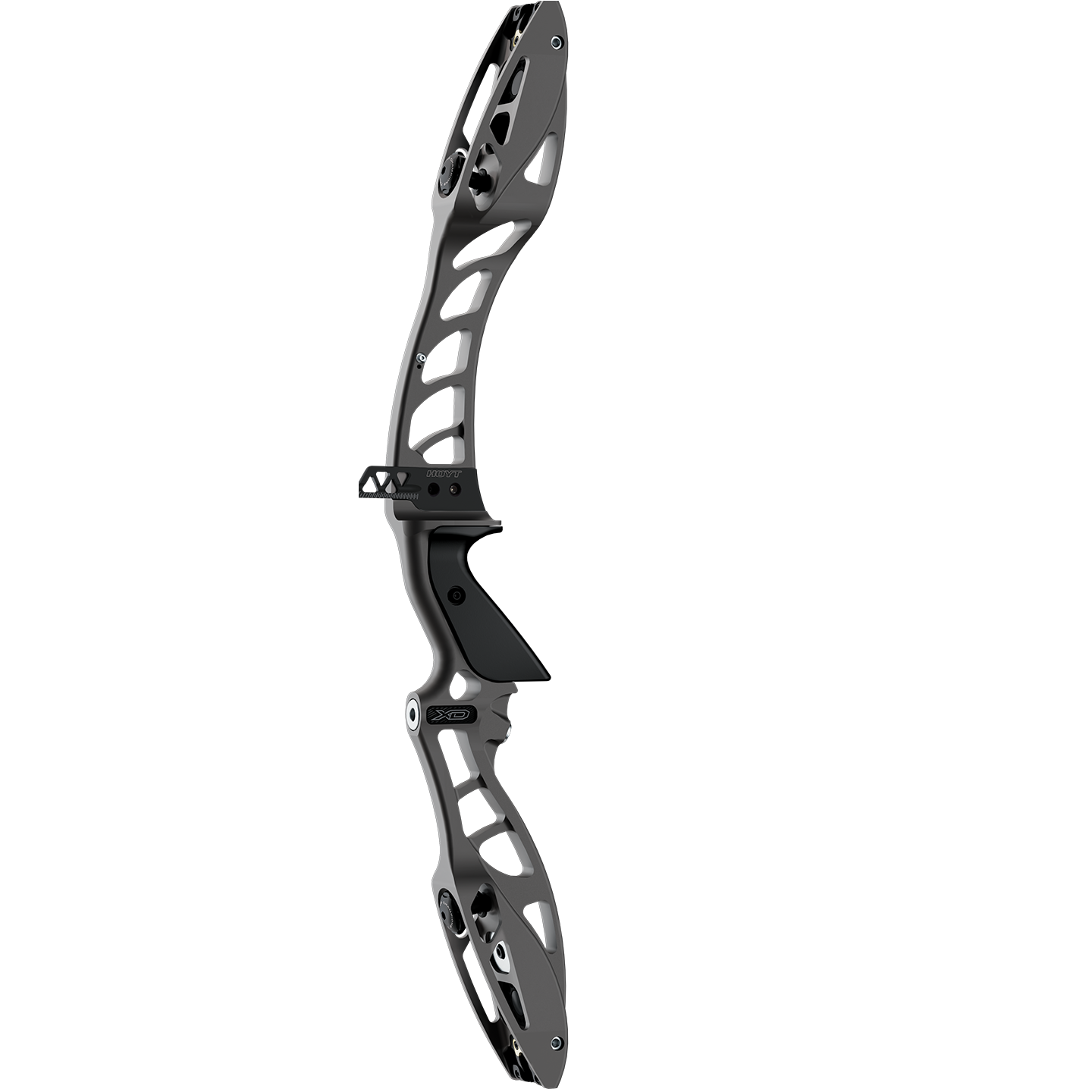

Hoyt Formula XD Riser

The brand new 2024 XD Risers are now on pre-order, these come with the brand new Hoyt colours and the brand new laser etched tiller bolts please allow 6-8 weeks.

The sleek, elegant Formula XD is refined from the Olympic and World Championship winning pedigree of previous generation Hoyt recurve risers. The Formula XD is designed with a grip-to-limb pivot geometry that optimizes tuning when paired with modern, high-performance recurve limb, eliminating unwanted vertical nock travel.


360 Damper System

Formula XD features a new 360 Damper System - an all-axes vibration killer providing a significant improvement in shot-feel. The Formula XD is designed with Dynamic Flex Control to provide riser flex where it’s ideal, and stiffness where it’s needed. Formula XD will provide a shot experience like no other Hoyt before it.

String Tension Technology

This unprecedented advancement and innovation in recurve archery allows shooters to adjust the string tension to customize limb feel. These small adjustments at the limb rocker point make the limbs feel shorter or longer, without any other alterations of the bow, limbs, or the tune of the bow.

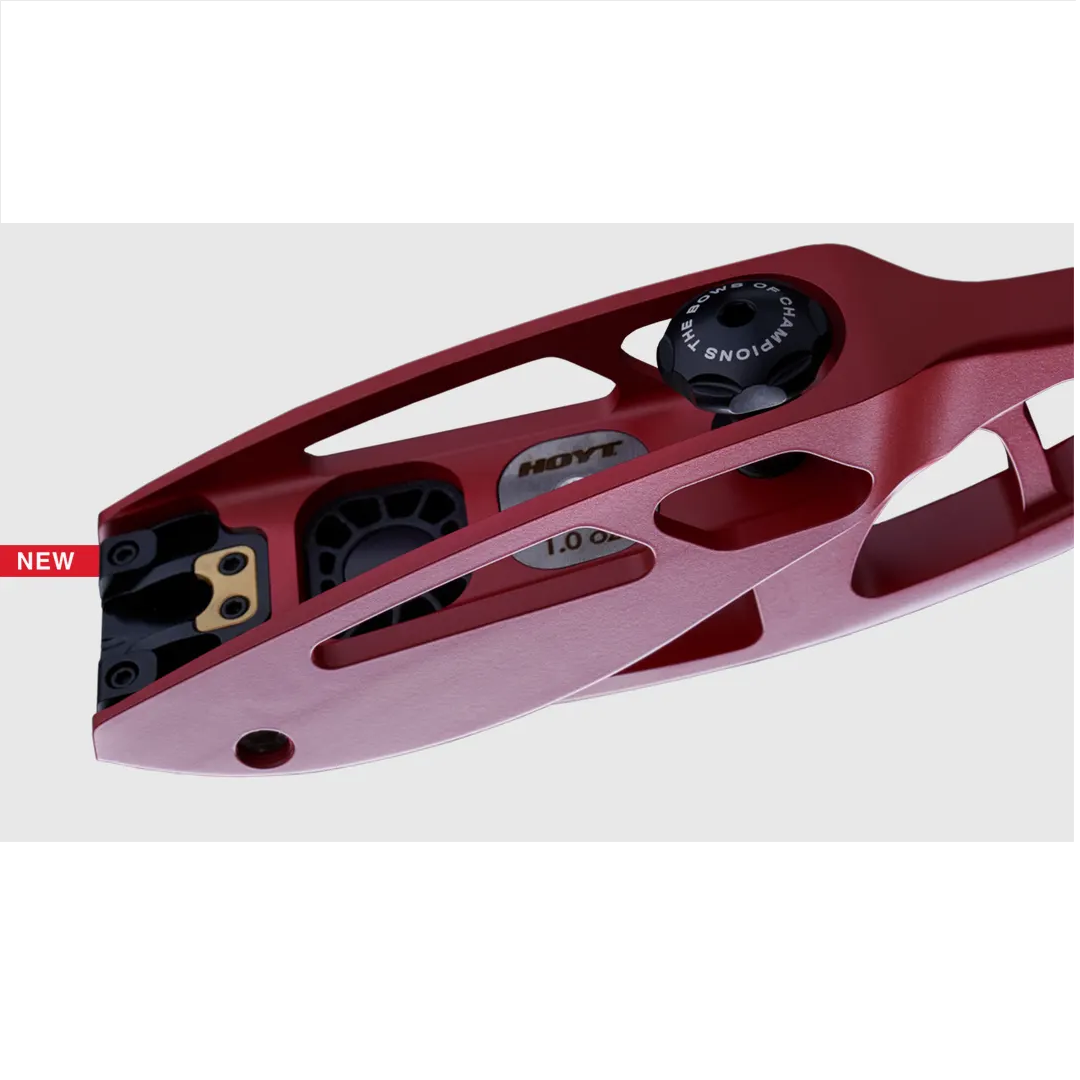

Perfect Balance Weight System

The Perfect Balance Weight System (PBWS) features two 1 oz. weights that can be moved between the top and bottom limb pockets, allowing archers to customize the vertical balance of the Formula XD.

Pro Series Dovetail Block

A refined Pro Series Dovetail block features an all-new precision alloy insert. This helps eliminate potential galling under certain conditions, eliminating unwanted noises and vibrations being generated from the limb pocket during the draw cycle.

New color options, perfect for any podium.

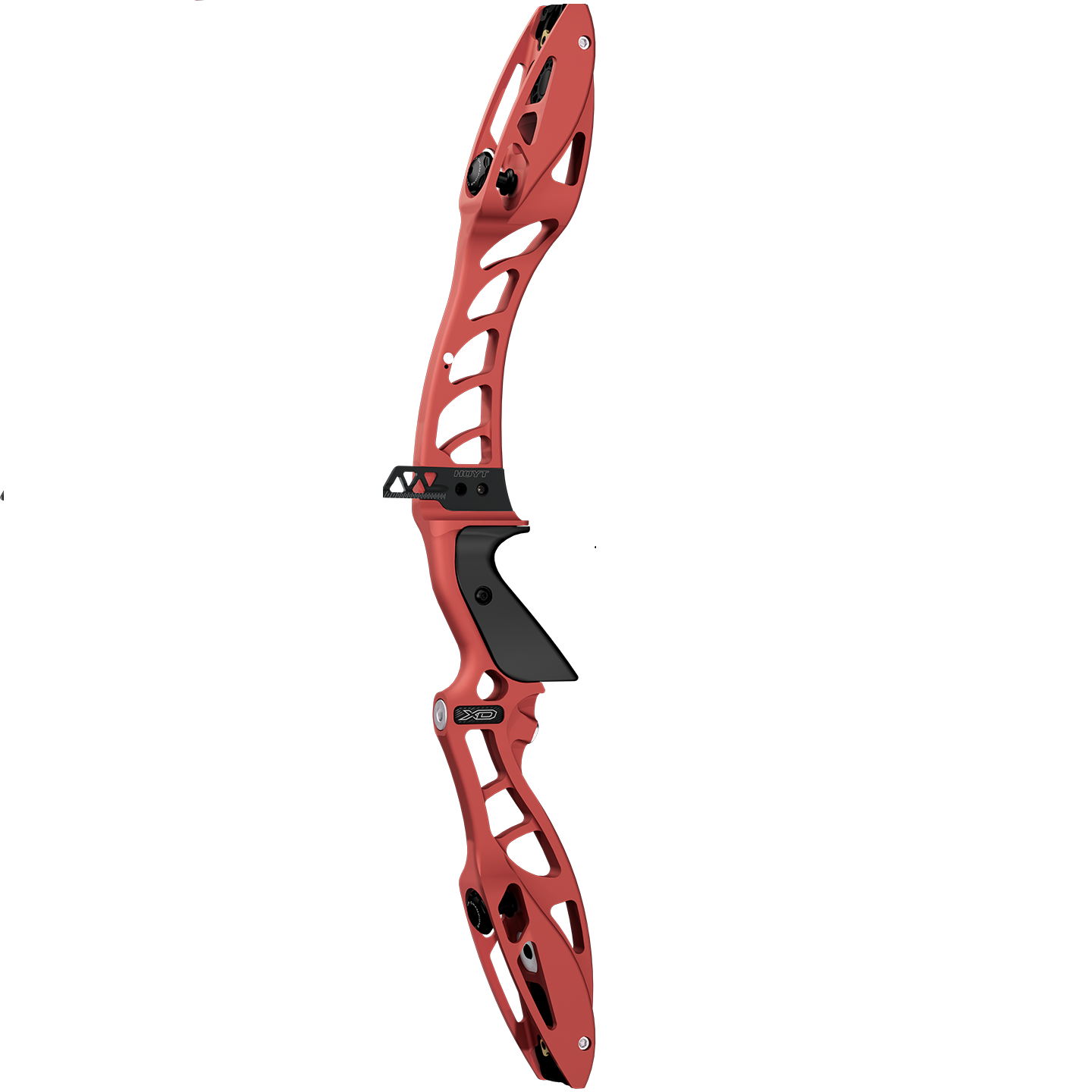

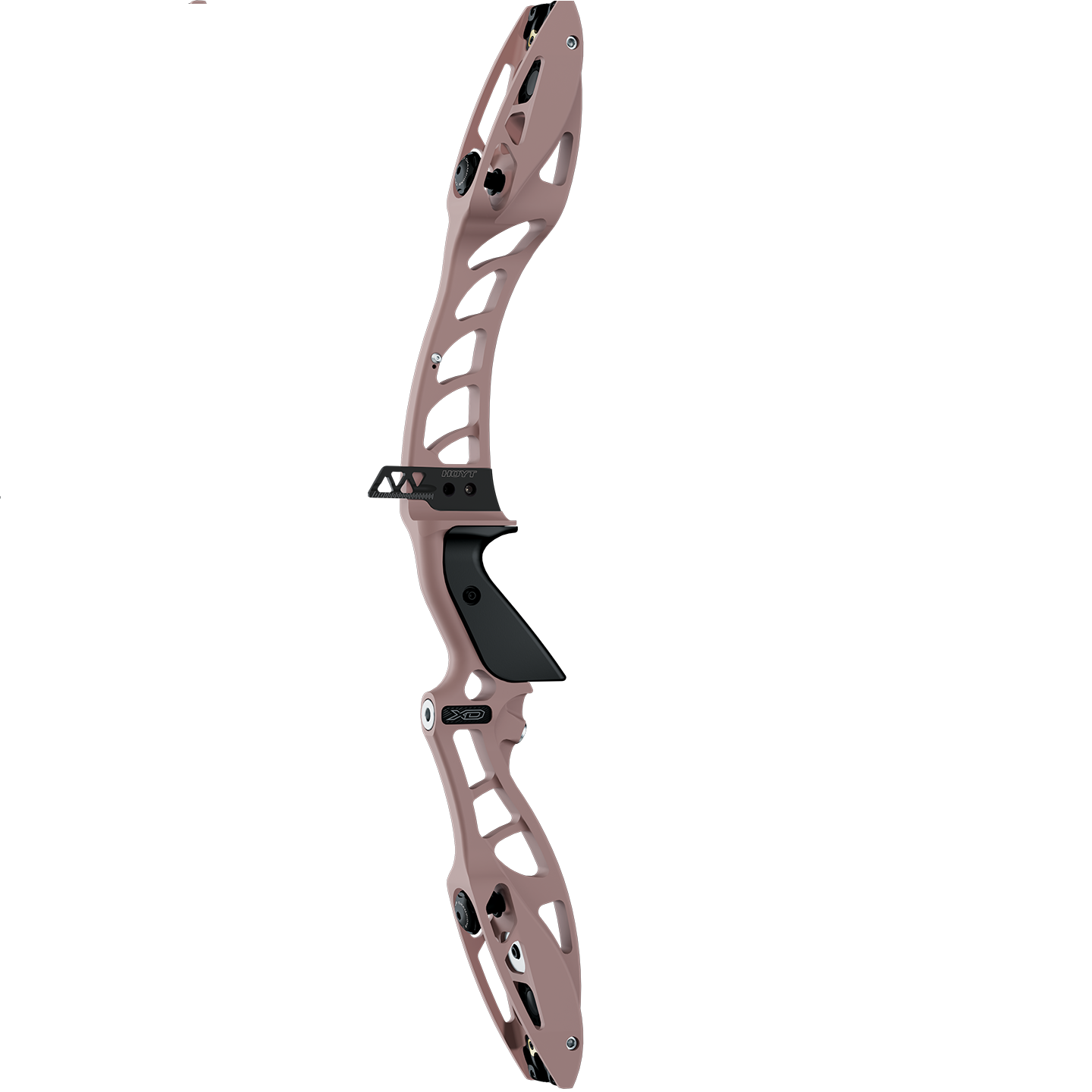

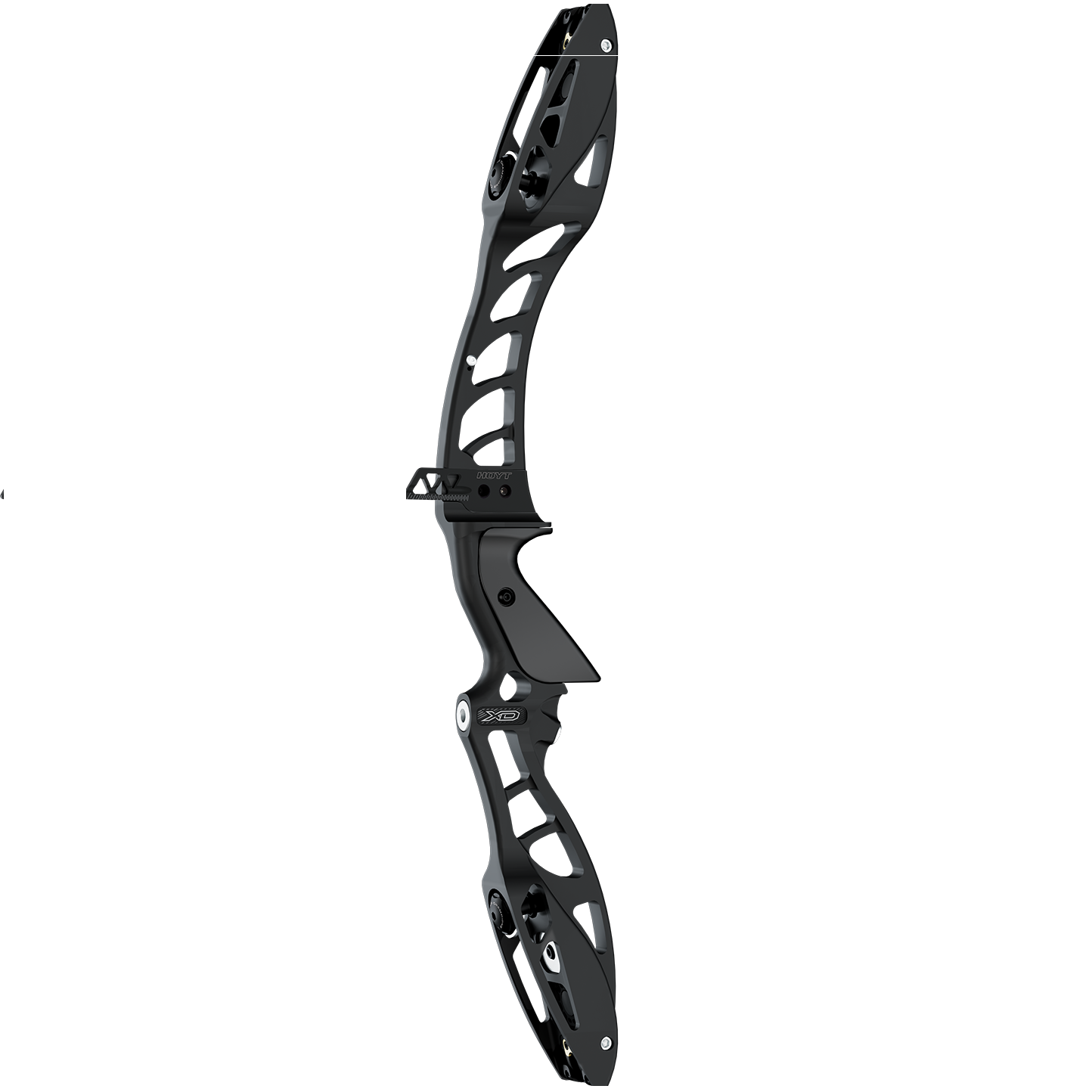

Formula XD is available in six Cerakote colors including: Frost White, Slate, Liquid Blue, Pink Champagne, Championship Red and Black Ink.

VertaTune Clicker Plate

The Formula XD comes standard with three options of VertaTune rest plates - high, middle and low – allowing for the customization of arrow rest position for optimized tuning and performance that matches the archer’s shooting style.

New optimized grip position

The Formula XD features an optimized riser geometry, shifted from previous generation Hoyt Formula recurves to achieve better tuning by decreasing unwanted vertical nock travel. This centralized grip position promotes more consistent engagement from the archer and helps achieve a linear shot response.


Formula XD Riser

Mass Weight - 2.8 LBS
Riser Length - 25"
Overall Length w/Short Limbs - 66"
Overall Length w/Medium Limbs - 68"
Overall Length w/Long Limbs - 70"
Limb Fitting System - HOYT FORMULA


1 item left
